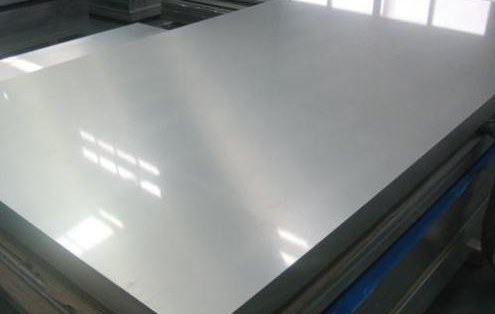

AA5052/5083 ALUMINIUM MILLED PLATE
AMP 5052 - ALUMINIUM PRECISION MILLED PLATE
Alloy: 5052 (Meet the standard: GB/T3190 or EN573-3)
| Material Attributes | Evaluation |
| Dimensional Stability Machinability Erodability Weldability (TIG/MIG/ERW/EBW) Corrosion Resistance ( Stress cracking/Seawater/Weather) Highest Use Temperature ( Long term/Occasional) Oxidability (Technical/Decorative) Polishing Food Contact | Very good Good Very good Good/Good/Good/Very Good Normal/Good/Very good 100/180X: Good/Not application Very good good |
Evaluation rate from very good to not application (very good / good / normal / poor/not application).
Typical Mechanical Properties
| Ultimate Tensile Strength | MPa (N/mm2) | 160-220 |
| Yield Strength | MPa (N/mm2) | 60-90 |
| Elongation | As% | 20-30 |
| Brinell Hardness | HB | 45-60 |
Typical physical Properties
| Density | g/cm, | 2.68 |
| Thermal Conductivity | W/(mk) | 130-150 |
| Electrical Conductivity | m/Qmm2 | 19-21 |
| Modulus of Elasticity | GPa | 70 |
| Coefficient of Thermal Expansion | *10-«/K | 23.8 |
| ategory | | | Torelance | |
| | Tickness | 6 mm - 250 mm | Tickness Torelance | ±0.12mm |
| | Max.Width | 2500mm | Width Tolerance | 0/+6 mm |
| Milled Plate | Max.Length | 6000 mm | Lenghth Tolerance | 0/+10 mm |
| Running Stock (WxL) | 1470 x 3000mm 2500 x 3000mm | Flatness | w 0.35 mm/m (T w 15mm) W0.13 mm/m (T>15mm) |
| | Roughness | w0,4u m |
| *Other size on request |
* Other size on request.
Typical Applications
♦ Manufacturing device of semi-conductor
♦ Manufacturing device of liquid crystal
♦ Manufacturing device of solar panel
♦ Industrial robot
♦ Medical machinery
♦ Office automation equipment
♦ Optical instrument
♦ Tooling and fixture
AMP 5083 - ALUMINIUM PRECISION MILLED PLATE
Alloy: 5083 (Meet the standard: GB/T3190 or EN573-3)
| Material Attributes | Evaluation |
| Dimensional Stability | Very Good |
| Machinability | Very Good |
| Erodability | Very Good |
| Weldability (TIG/MIG/ERW/EBW) | Good/Good/Good/Very Good |
| Corrosion Resistance ( Stress cracking/Seawater/Weather} | Normal/Good/Very good |
| Highest Use Temperature ( Long term/Occasional) | 100/180T； |
| Oxidability (Technical/Decorative) | Good/Not application |
| Polishing | Very good |
| Food Contact | Good |
* Evaluation rate from very good to not application (very good / good / normal / poor/ not application).
Typical Mechanical Properties
| Ultimate Tensile Strength | MPa (N/mm2) | 220-300 |
| Yield Strength | MPa (N/mm2) | 110-140 |
| Elongation | As% | 10-20 |
| Brinell Hardness | HB | 70-85 |
Typical physical Properties
| Density | g/cm3 | 2.66 |
| Thermal Conductivity | W/(mk) | 110-140 |
| Electrical Conductivity | m/Qmm2 | 16-19 |
| Modulus of Elasticity | GPa | 70 |
| Coefficient of Thermal Expansion | *10-6/K | 24.2 |
| Category | | | Torelance | |
| | Tickness | 6 mm - 250 mm | Tickness Torelance | ±0.12mm |
| | Max.Width | 2500mm | Width Tolerance | 0/+6 mm |
| Milled Plate | Max.Length | 6000 mm | Lenghth Tolerance | 0/+10 mm |
| Running Stock (WxL) | 1470 x 3000mm 2500 x 3000mm | Flatness | w 0.35 mm/m (T w 15mm) W0.13 mm/m (T>15mm) |
| | Roughness | w0,4u m |
| *Other size on request |
Typical Applications
♦ Manufacturing device of semi-conductor
♦ Manufacturing device of liquid crystal
♦ Manufacturing device of solar panel
♦ Automation equipment panel
♦ Various moulds
♦ Tooling and fixture
♦ Jig, checking fixture and vehicle etc.
| Material Attributes | Evaluation |
| Dimensional Stability Machinability Erodability Weldability (TIG/MIG/ERW/EBW) Corrosion Resistance ( Stress cracking/Seawater/Weather) Highest Use Temperature ( Long term/Occasional) Oxidability (Technical/Decorative) Polishing Food Contact | Very Good Good Good Good/Good/Good/Very Good Normal/Good/Very Good 100/180^ Very Good/Good Good Good |
’Evaluation rate from very good to not application (very good / good / normal / poor / not application).
